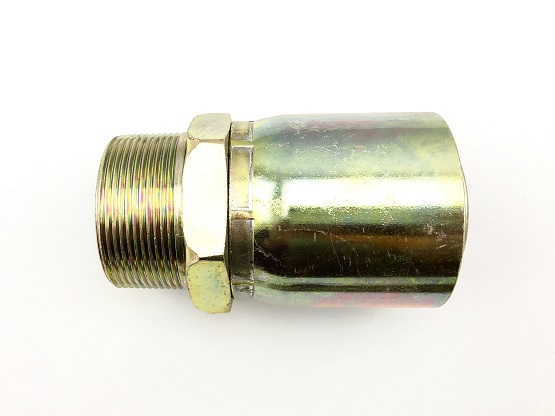

PT公牙-中壓夾頭
BSPT
fittings seal through the thread
interface mechanism. Care should
be taken not to confuse the BSPT
fitting with the NPTF male fitting.
BSPT has a 55° thread angle.
NPTF has 60° thread angle
規格表
| 編 號 | 牙 | HOSE BORE | H |
| A1201S1-0404 | 1/4"-19 | 1/4" | 19 |
| A1201S1-0808 | 1/2"-14 | 1/2" | 23 |
| A1201S1-1212 | 3/4"-14 | 3/4" | 27 |
| A1201S1-1616 | １"-11 | １" | 35 |
| A1201S1-2020 | １1/4"-11 | １1/4" | 50 |
| A1201S1-2424 | １1/2"-11 | １1/2" | 57 |
| A1201S1-3232 | ２"-11 | ２" | 68 |
